4-Hole Lo-Pro Rotator™
Stock#: | TKR-01 |
Weight limit: | 220lb (100kg) |
Material: | Aluminum |
Adjustability: | Rotational |
Proximal connection: | Threaded
or
Unthreaded 4-hole |
Distal connection: | Threaded bolt receiver (7/16 SAE for KD, upon request) or
Unthreaded 4-hole |
Item weight: | 175g |
Build height: | 3/4 -in (20mm) |
Torque settings: | M6 Screws: 7.4ft-lb (10Nm) 7/16 Bolt: 9ft-lb (12.2Nm) |
Benefits:
- Positional stop at 180-degrees
- Low build height makes KD use possible
- Integrates seamlessly with top of DAW 4-Bar and 5-Bar knees
- Integrates with any 4-hole socket adapter or connector
Reimbursement:
Suggested L-Codes*: L5926
Order includes:

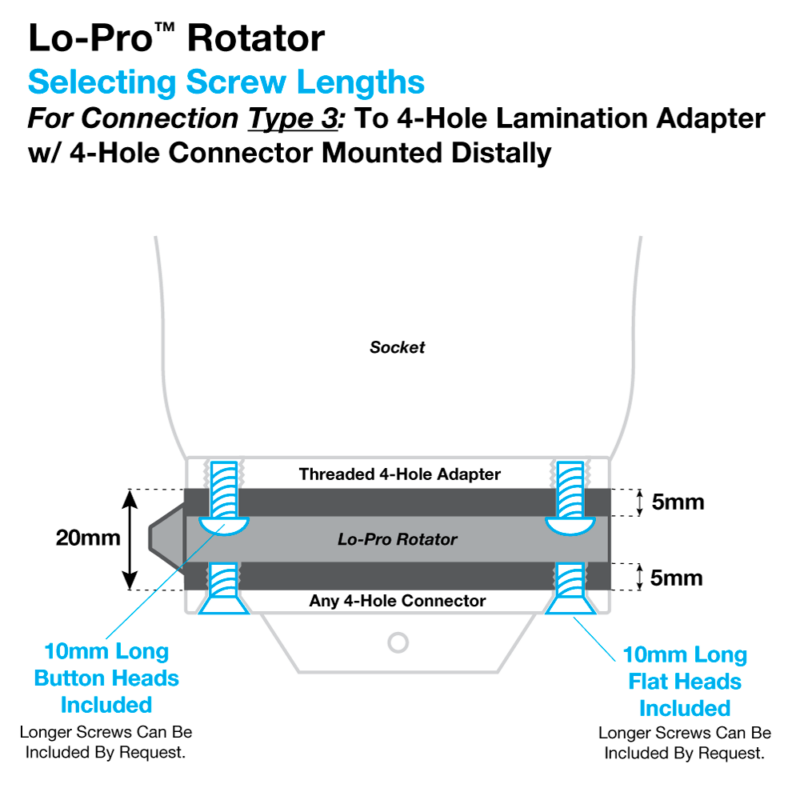

Recommended Instructions for Use & Torque Settings
1x M4 screw, for removing plug
4x M6 button head screws (length matched to DAW knee of your choice)
4x M6 flat head screws, length 10mm. We can also included longer screws
For KD application, request:
1x 7/16 SAE bolt, 8mm hex (length matched to DAW True-KD™ knee of your choice)
Compatible Knees:
- 5PS10-KD™, True-KD™ Knee K3/K4, Stance Flexion
- 5PS0-HW™, K3/K4, Stance Flexion
- 50S0 Ultra-Lite™, K2, Stance Flexion
- 4010-KD™, True-KD™ Knee K2
