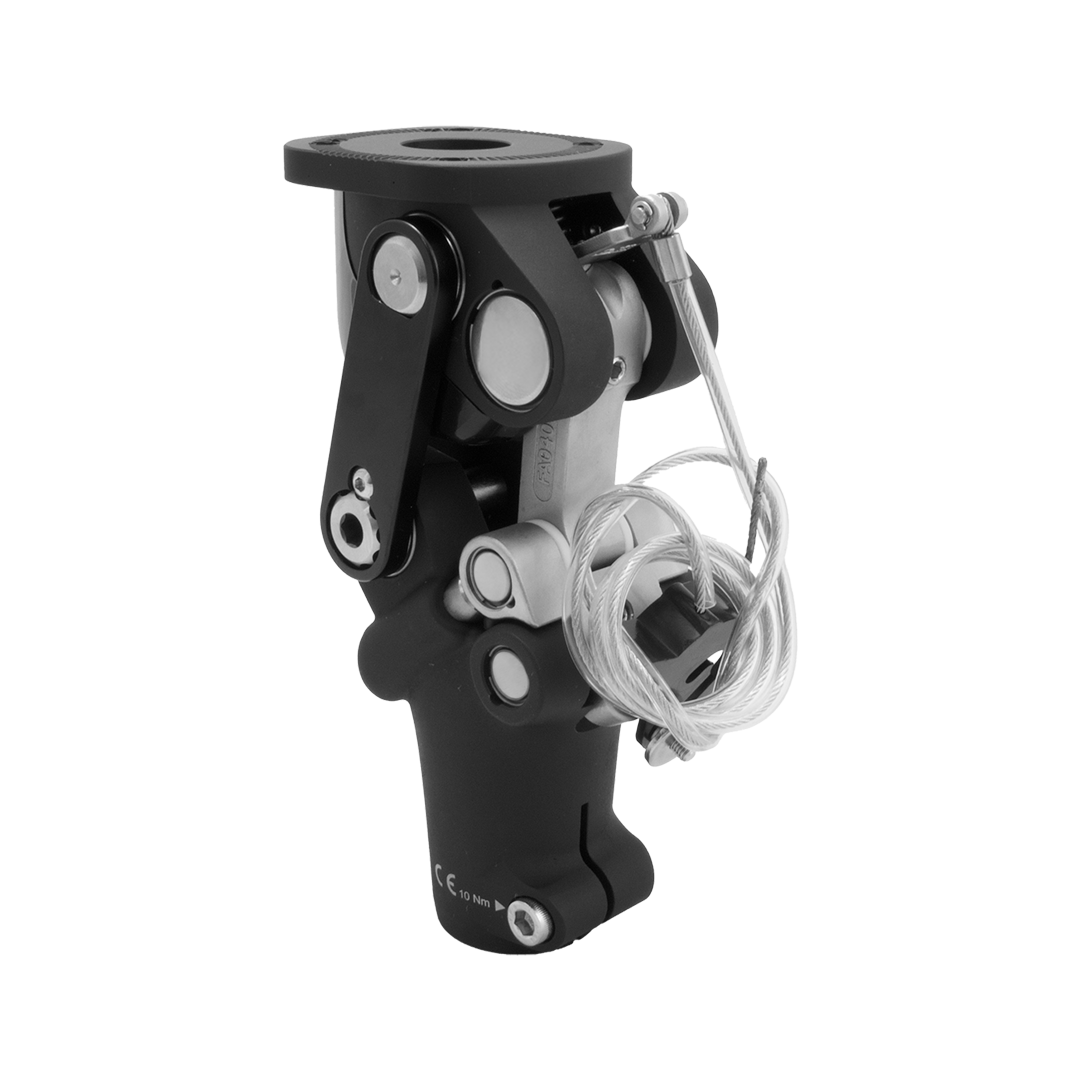

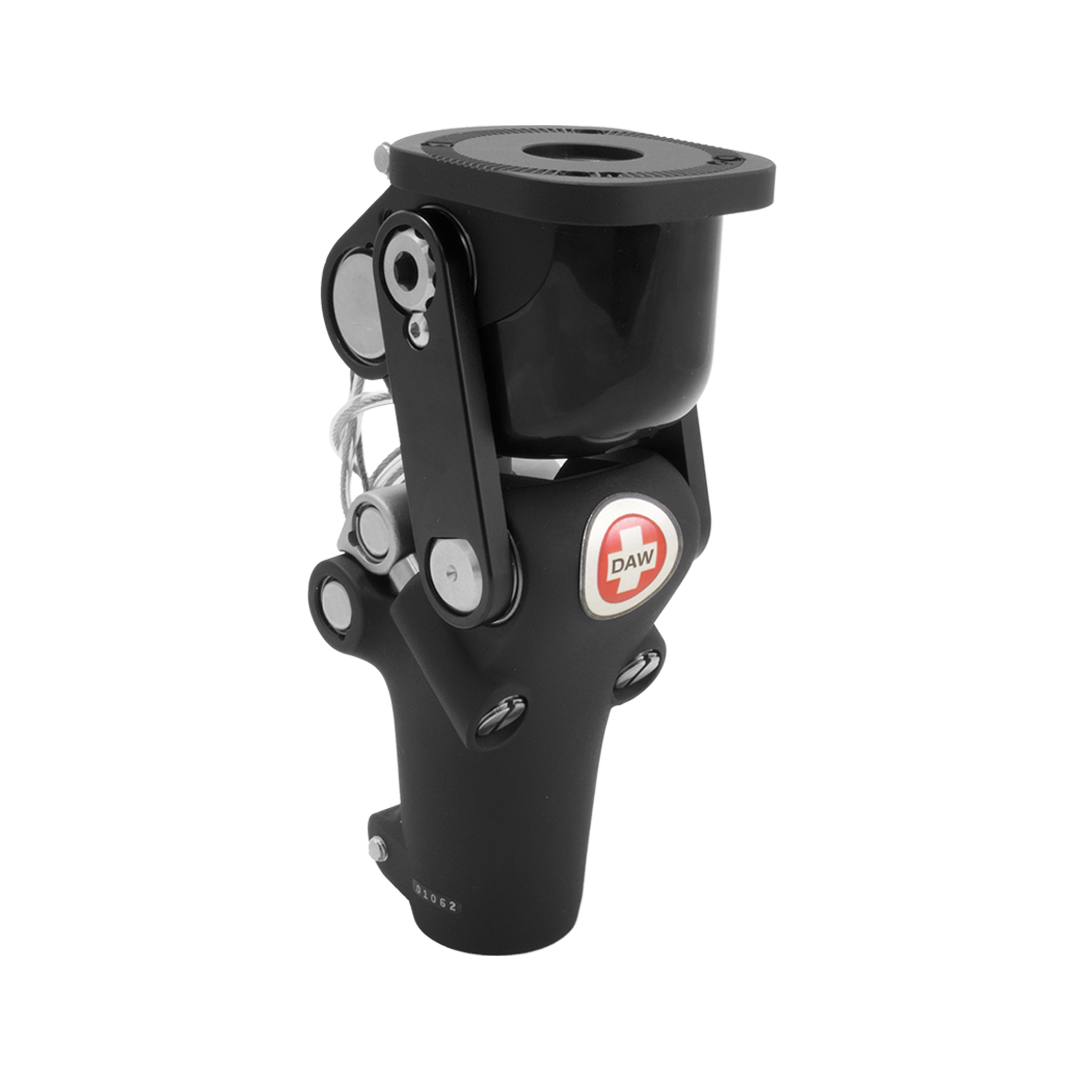

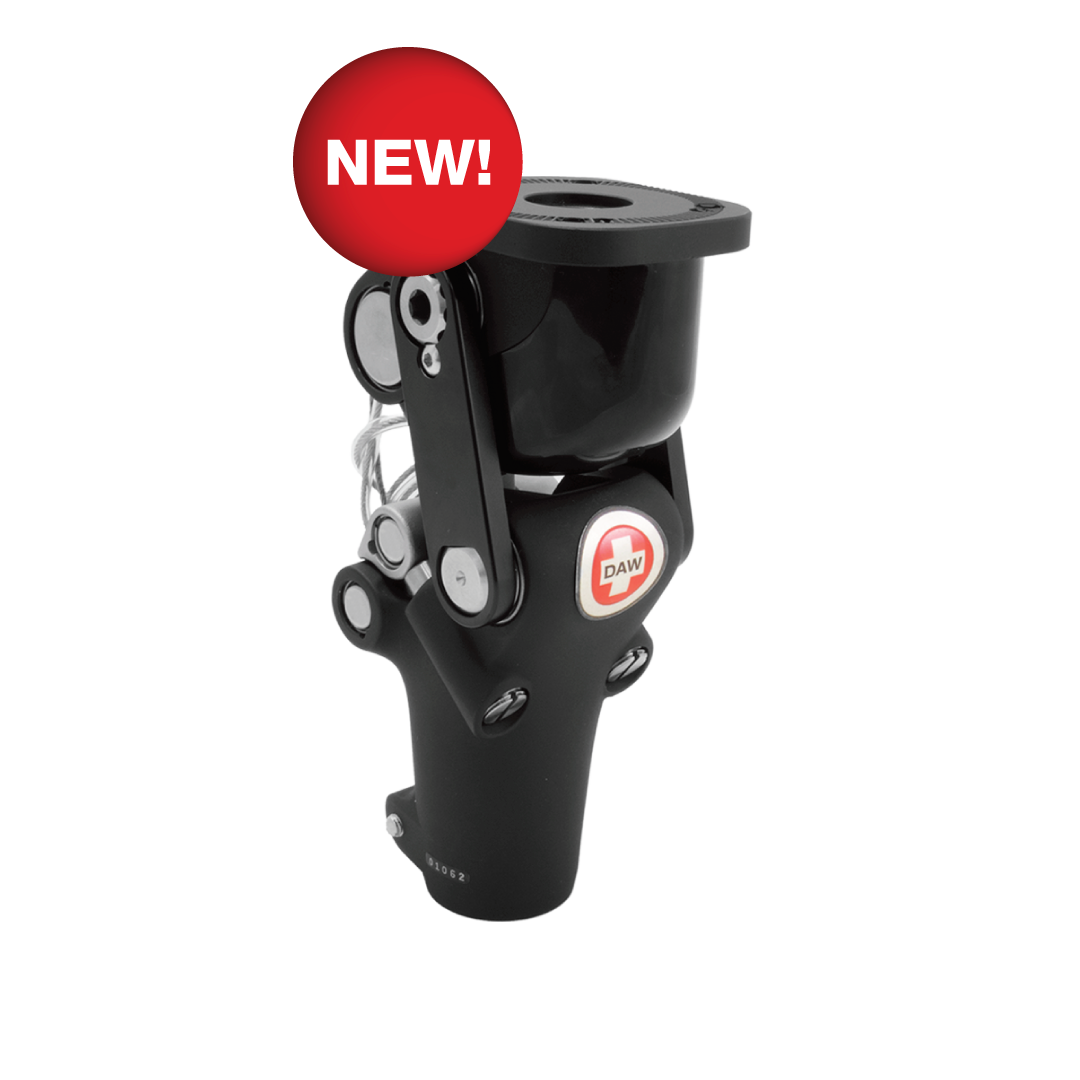

Stance Flexion 5-Bar Knee with a Manual Lock. Durable & Cost-Effective Construction.
Stance Flexion at a fraction of the cost! 2 precision stability adjustments and 3 precision swing adjustments allow for complete customization to your Patient’s daily living requirements. Proximally attach ANY adult 4-hole connector (see Specifications below).
Primary benefits:
Whether your Patient is a new or experienced walker, a precision Stance Flexion adjustment (2° – 8°) allows heel-strike Cushion to be fine-tuned to your Patient’s confidence level.
Stability heightens at the critical moment of heel strike. DAW 5-Bar Knee Design momentarily shifts the Instant Center of Rotation further posterior providing a much safer stance phase.
Optionally disengage the Manual Lock as soon as your patient’s progress permits. Once disengaged, your patient benefits from Stance Flexion and the unmatched stability of DAW’s 5-Bar Design.
Without affecting your alignment, the Custom-ICR™ Stability Adjustment increases stability while also increasing efficiency.
The Friction Swing Control Setting auto-readjusts. No readjustment is required down the line as friction surfaces wear.
Proven reliability, zero maintenance & forever-smooth stainless ball bearing axes.
Short Description for L5611: Ak 4 bar link w/fric swing.
Long Description for L5611: ADDITION TO LOWER EXTREMITY, ENDOSKELETAL SYSTEM, ABOVE KNEE – KNEE DISARTICULATION, 4 BAR LINKAGE, WITH FRICTION SWING PHASE CONTROL.
Short Description for L5845: Knee-shin sys stance flexion.
Long Description for L5845: ADDITION, ENDOSKELETAL, KNEE-SHIN SYSTEM, STANCE FLEXION FEATURE, ADJUSTABLE.
Short Description for L5925: Above knee manual lock
Long Description for L5925: ADDITION, ENDOSKELETAL SYSTEM, ABOVE KNEE, KNEE DISARTICULATION OR HIP DISARTICULATION, MANUAL LOCK
Short Description for L5850: Endo ak/hip knee extension assist.
Long Description for L5850: ADDITION, ENDOSKELETAL SYSTEM, ABOVE KNEE OR HIP DISARTICULATION, KNEE EXTENSION ASSIST.
Disclaimer: The suggested L-Codes, reimbursements, and knee costs are shown for illustration and comparative purposes only. While DAW Industries believes the suggested L-Codes to be consistent with the functions provided, it must be understood that only appropriate authorized officials of the DMERCs are qualified to interpret their policies and practices. Accordingly, DAW does not warrant, nor does it take responsibility for the validity of the information presented here, nor for the actions of any DMERC or other entity with regard to reimbursement or any other issue. DAW also recognizes that practitioners’ costs for professional services and related overheads far exceed the costs shown herein. Nothing contained herein should be construed to contradict that obvious fact. All data is subject to change without notice.
