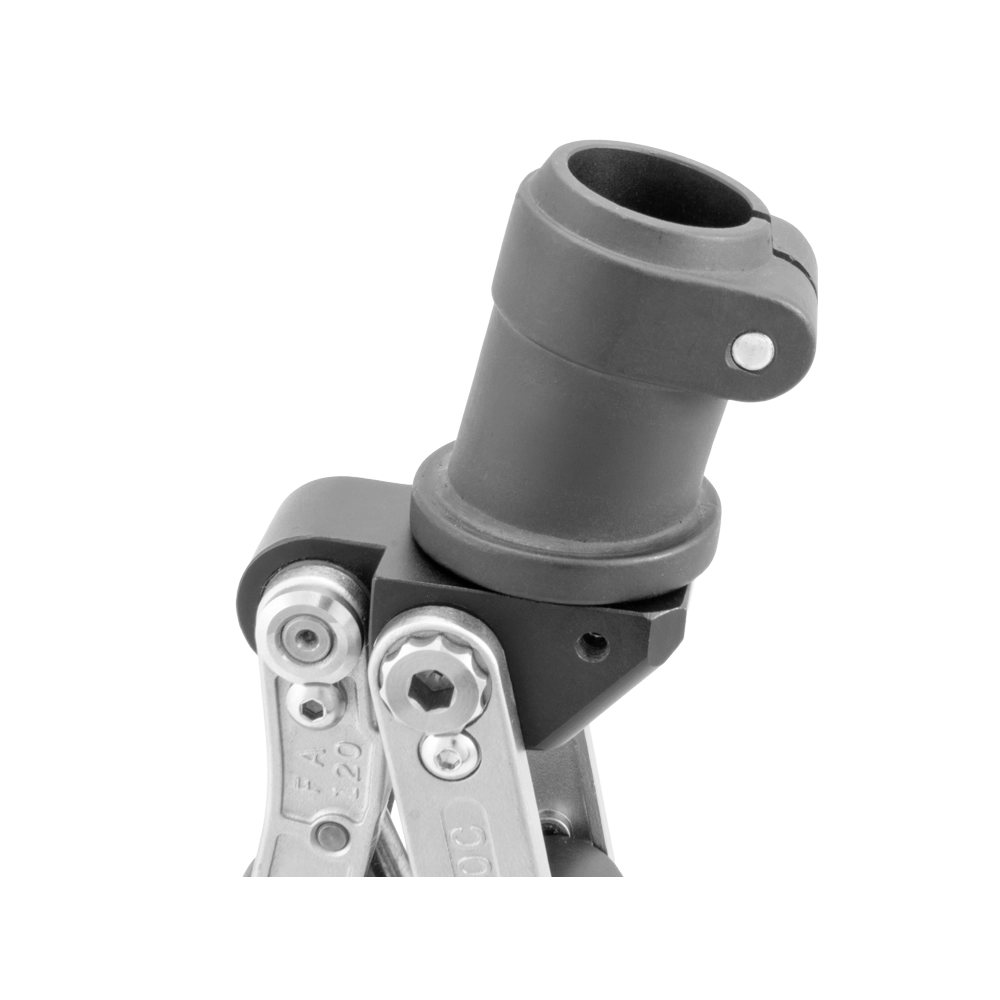

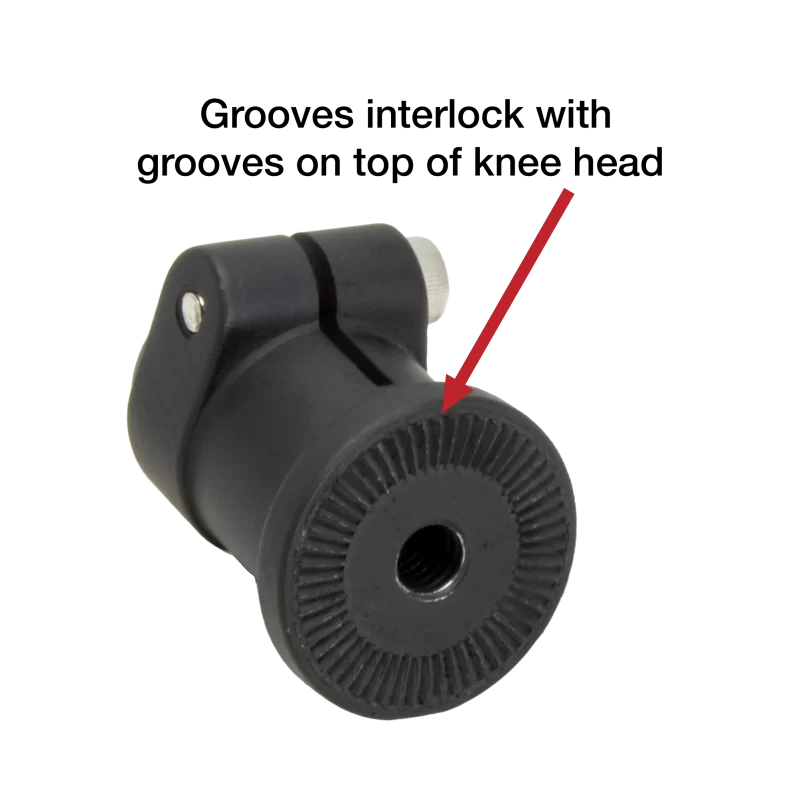

Pediatric Hip-Disarticulation Knee-Top Connector, Angled 10-Degrees
| Stock#: | TKC-CA |
| Child Weight limit: | 132lb (60kg) |
| Petite Adult Weight limit: | 165lb (75kg) |
| Material: | Aluminum |
| Adjustability: | Rotation |
| Proximal connection: | 22mm Tube Clamp, 5mm Hex |
| Distal connection: | 3/8 Bolt (8mm Hex) |
| Item weight: | 70g |
| Build height: | 1 7/8in (48mm) |
| Torque settings: | 12.2Nm |
Order includes:
1x Recommended Instructions for Use
1x Bolt, 8mm Hex 3∕8 SAE (length matched to DAW Pediatric Knee of your choice).
1x Lock Washer.
Connect Directly to the Top of These Knees:
– Fearless Knee K3™
– Fearless Knee K2™
– 4p-Compact Knee™, The Petite Adult Knee
– 1C1™
